current position£ºHOME > PRODUCTS > Laser lampLaser lamp AU-W4220
- Description
- Features
- Specification
- Optional
• The multitube fiber coupler is adopted, which has stable performance and high reliability
• 42mm Continuous zoom lens with illumination angle 0.3°-42°
• Full focal spot homogenization, no scattered spots, high sharpness
• There is no return difference in the zoom lens throughout the entire journey
• Support spot brightness adjustment
• Stepper motors are driven with encoders
• Follow-up response time<100ms
• Operating temperature -40°-+50°
• DC12V power inputs
|
Model |
AU-W4215 |
AU-W4220 |
AU-W4118 |
|
Laser wavelength |
808nm±10 |
940nm±10 |
|
|
Laser power |
15W£¨Max.18W£© |
20W£¨Max. 25W£© |
18W£¨Max.21W£© |
|
Irradiation distance |
3000m |
5000m |
1500m |
|
Working life |
10000 hours£¬£¾80% |
||
|
Lasing mode |
Multimode |
||
|
Optical axis adjustment |
Electric optical axis adjustment (optional) |
||
|
Laser brightness adjustment |
Support |
||
|
Flare angle |
0.3°-42° |
0.4°-30° |
|
|
Position of light spot |
Coaxial |
||
|
Shape of light spot |
Circle |
||
|
Light spot homogeneity |
Uniformity |
||
|
Sharpness of light spot |
High |
||
|
Drive motor |
Stepper motor |
||
|
Position accuracy |
0.05° |
||
|
Drive motor encoder |
Resolution 4096£¨optional£© |
||
|
Communication interface |
RS485 |
||
|
Communication baud rate |
9600bPs£¬No check£¬data bits is 8£¬stop bit is 1 |
||
|
Communication protocol |
PELCO-D |
||
|
Heat- dissipating method |
Fan |
||
|
Operating temperature |
-40°-+50° |
||
|
Operating voltage |
DC12V |
||
|
power |
40W£¨Max. 65W£© |
60W£¨Max. 100W£© |
40W£¨Max. 55W£© |
|
Weight |
3.5KG |
||
|

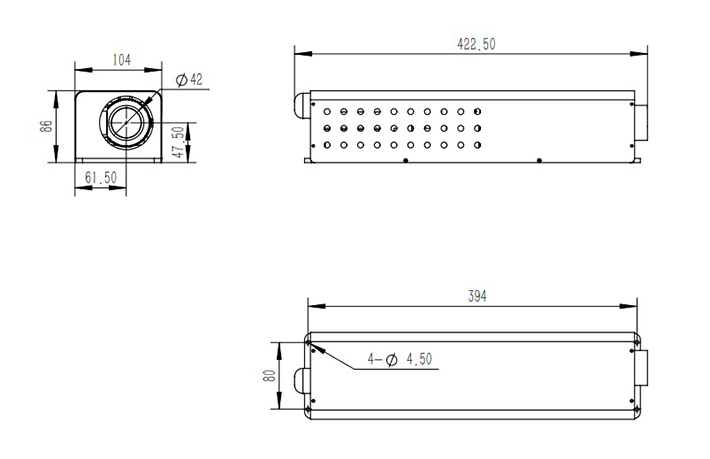

Size |
422(394)x104x86mm |
||
