current position£ºHOME > PRODUCTS > Laser lampWhite laser lamp AU-W5300
- Description
- Features
- Specification
- Optional
• The RGB fiber coupler is adopted, which has stable performance and high reliability 42mm Continuous zoom lens with illumination angle 0.3°-30°
• Full focal spot homogenization, no scattered spots, high sharpness
• There is no return difference in the zoom lens throughout the entire journey
• Support spot brightness adjustment
• Follow-up response time<100ms
• Operating temperature -35°-+55°
• DC24V power inputs
|
Model |
AU-W5300 |
|
Laser type |
RGB laser coupler |
|
Laser power |
5W |
|
Irradiation distance |
£¼3000m |
|
Working life |
20000 hours£¬£¾80% |
|
Lasing mode |
Multimode |
|
Optical axis adjustment |
Manual |
|
Laser brightness adjustment |
Support |
|
Flare angle |
0.3°-30° |
|
Position of light spot |
Coaxial |
|
Shape of light spot |
Circle |
|
Light spot homogeneity |
Uniformity |
|
Sharpness of light spot |
High |
|
Communication interface |
RS485 |
|
Communication baud rate |
9600bPs£¬No check£¬data bits is 8£¬stop bit is 1 |
|
Communication protocol |
PELCO-D |
|
Heat- dissipating method |
Fan |
|
Operating temperature |
-35°-+55° |
|
Operating voltage |
DC24V |
|
power |
25W |
|
Weight |
2.2KG |
|

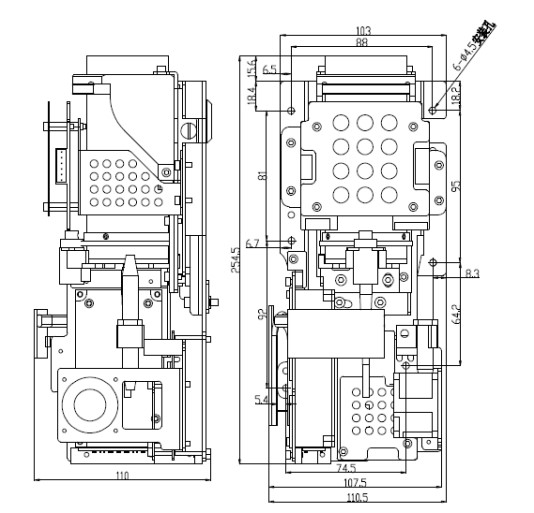

Size |
254.5*110.5*110mm£¨L*W*H£© |
